Optional module ZDOIAC Dual Link - pH, ORP
Optimal salt level required: 4 g/l; Possibility of expansion: NE
Product is no longer available
| ID item: | 93163000 |
| Category: |
Salt water treatment Salt water treatment |

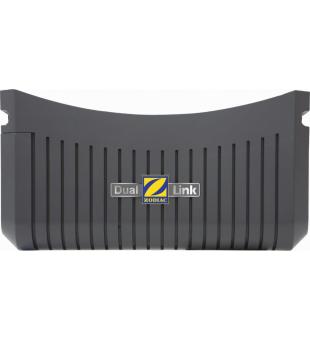

Dual Link is an accessory for the TRi Expert, which allows you to measure and adjust pH and ORP. Values are measured by the probes and pH is adjusted by dosing the acid with a peristaltic pump.
- Dual Link performance depends on the chlorinator output power
- pH range: 0.0 - 12.0 pH
- ORP range: 100 - 1000 mV
- Calibration of pH probe with pH buffer solution 7.5 pH and ORP probe with 700 mV solution
- The peristaltic pump is capable of delivering 1.8 l / h
Accessories included in the pack
- pH probe
- ORP probe
- pH 7.5 buffer solution
- ACL 700mV buffer solution
- Hole saw
- POD kit
- Plumbing kit
Technical parametres
| Minimum required salt level: | 3 g/l |
|---|---|
| Optimal salt level required: | 4 g/l |
| Max. work pressure: | v bodě vstřiku - 1,5 bar |
| Easy to install: | Ano |
| Warranty period: | 2 years |
| Possibility of expansion: | NE |
Logistics
| Weight: | 3.6 kg |
|---|---|
| In group packs: | 1 |
| On palette: | 20 |
