Filtration tank Altea 1200mm - deep-bed with filtration cross (sand bed depth 1,0m)
Sortiment
Filtration tank Altea 1200mm - deep-bed with filtration cross (sand bed depth 1,0m)
Filtration tank Altea 1200mm - deep-bed with filtration cross (sand bed depth 1,0m)
Hlubokvrstvá písková filtrační nádoba; Material of the container: lisovaný polyester impregnovaný pryskyřicí a zesílený skelným vláknem ; Amount of filling: 1525 kg; Diameter of container: 1200 mm; Max. work pressure: 2,5 bar; Flow: 45 m3/h
| Price without VAT: | 3 796,41 EUR / Pcs |
In stock 0 Pcs
| ID item: | 5ABS1200 |
| Category: |
Over 88 cubic meters of water in the pool |

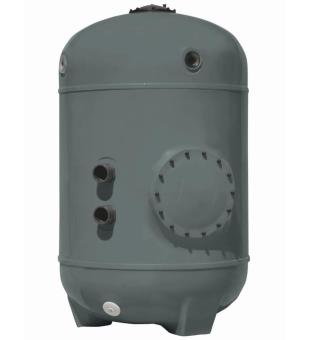

The Altea deep-bed filtration tank
is manufactured by the molding system, using resin impregnated
polyester reinforced with fiberglass. The tank has a circular manhole on
top of 220 mm in diameter with a polypropylen lid. The side manhole of
400 mm in diameter is provided with a polyester-fiberglass lid.
• Connection: 90 mm
• Max. operational pressure: 2,5 bar
• Max. temperature: 40 °C
• Filtration speed: 40 m³/h/m²
Technical parametres
| Product type: | Hlubokvrstvá písková filtrační nádoba |
|---|---|
| Material of the container: | lisovaný polyester impregnovaný pryskyřicí a zesílený skelným vláknem |
| Amount of filling: | 1525 kg |
| Diameter of container: | 1200 mm |
| Max. work pressure: | 2,5 bar |
| Flow: | 45 m3/h |
| Side opening: | Ano |
| Filtering speed: | 40 m3/h/m2 |
| Filter bed depth: | 1 m |
| Max. operating temperature: | 40 °C |
Logistics
| Weight: | 190 kg |
|---|---|
| In group packs: | 1 |
| On palette: | 0 |
