Counterswim V-JET 66m3/h, 230V, 2,2 kW, for liner, without pipe D=63 mm
| Price without VAT: | 1 428,76 EUR / Set |
| ID item: | 30122510 |
| Category: |
Built-in standard Built-in standard Vestavné standardní |

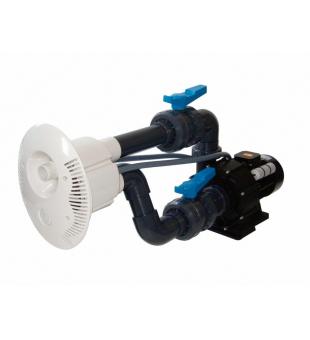

Inbuilt counterflow system V-JET
This counterflow system is ready for an easy installation. It is possible
to regulate the jet strength and air suction on the nozzle of 40 mm in
diameter, which is directionaly adjustable. The nozzle, suction and
pneumatic switch are positioned in the front cover panel of the
equipment.
Complete counterflow system V-Jet includes:
• Counterflow nozzle 40 mm (regulation water – air)
• Front cover panel – attractive design
• Pool wall lead-through
• Pump – different performance
• Electropneumatic switch with safety element
• PVC fitting
Technical data:
Pressure switch for switch on and off
• Inside jet for water regulation
• Outside jet for air suction regulation
• By touring inside jet to left side we got maximal water flow
• By touring inside jet on the other side (right) we reduce the water flow
Technical parametres
| Max. flow: | 66 m3/h |
|---|---|
| Voltage: | 230 V |
| Power consumption: | 2,2 kW |
| Connection: | 63 mm |
